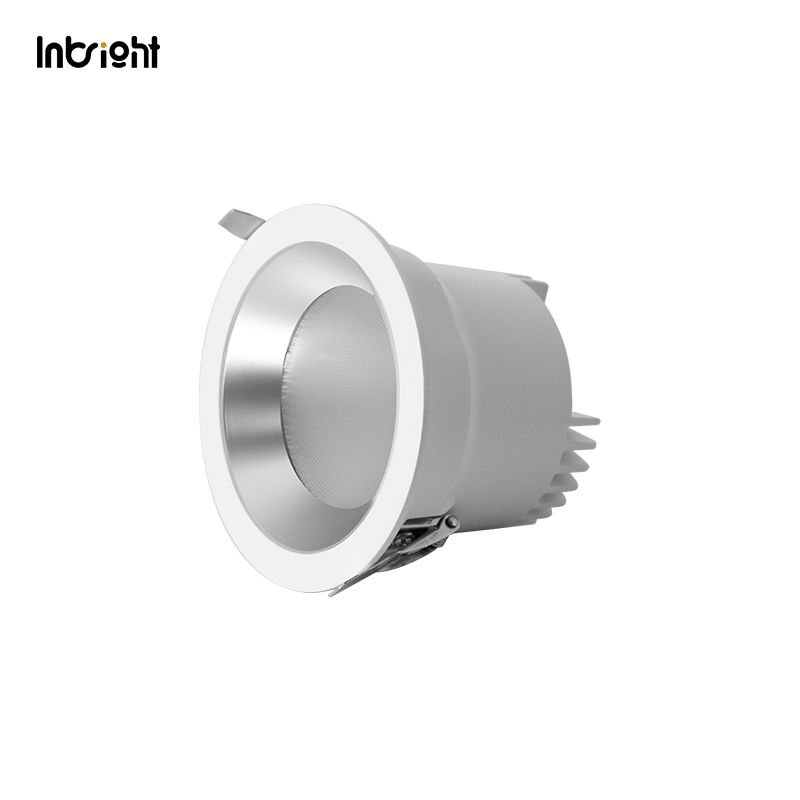

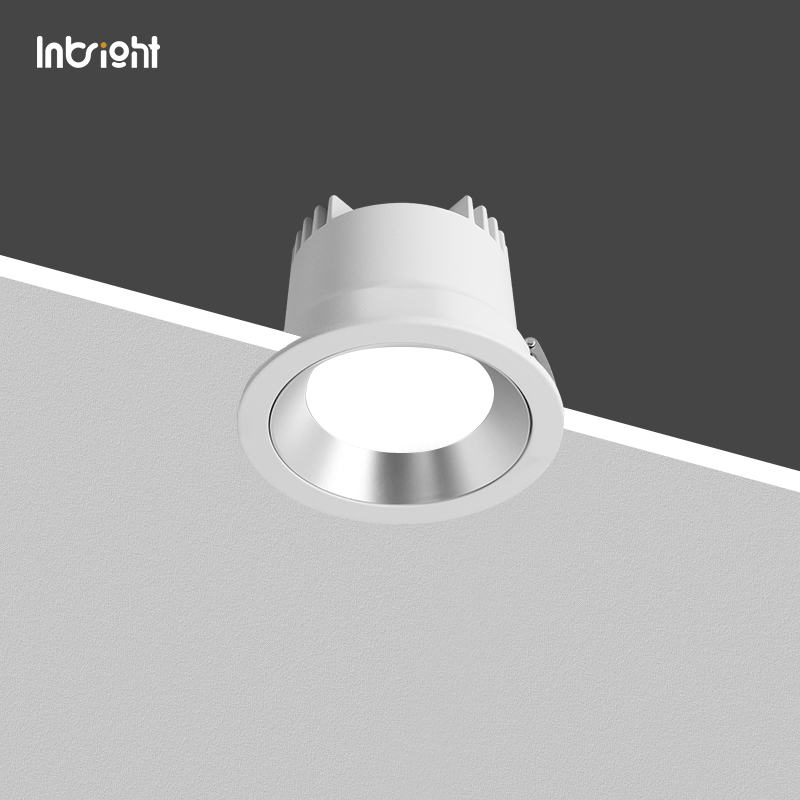

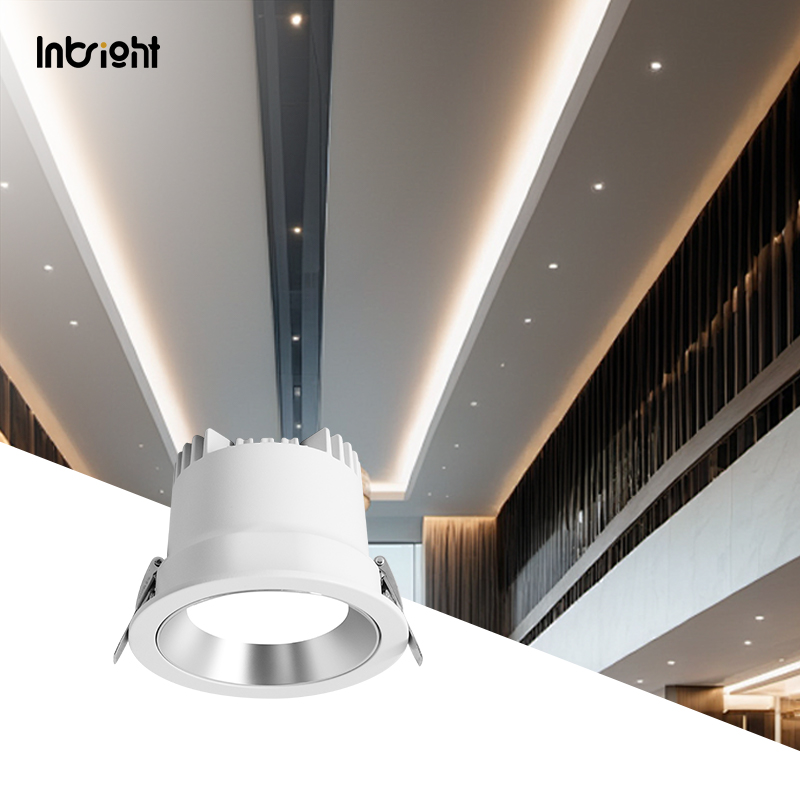

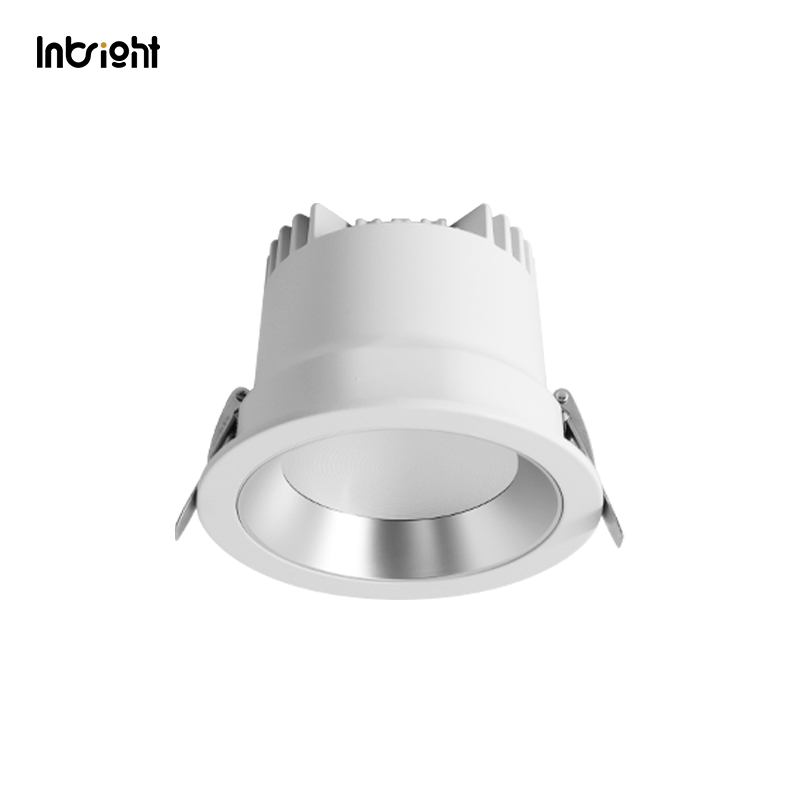

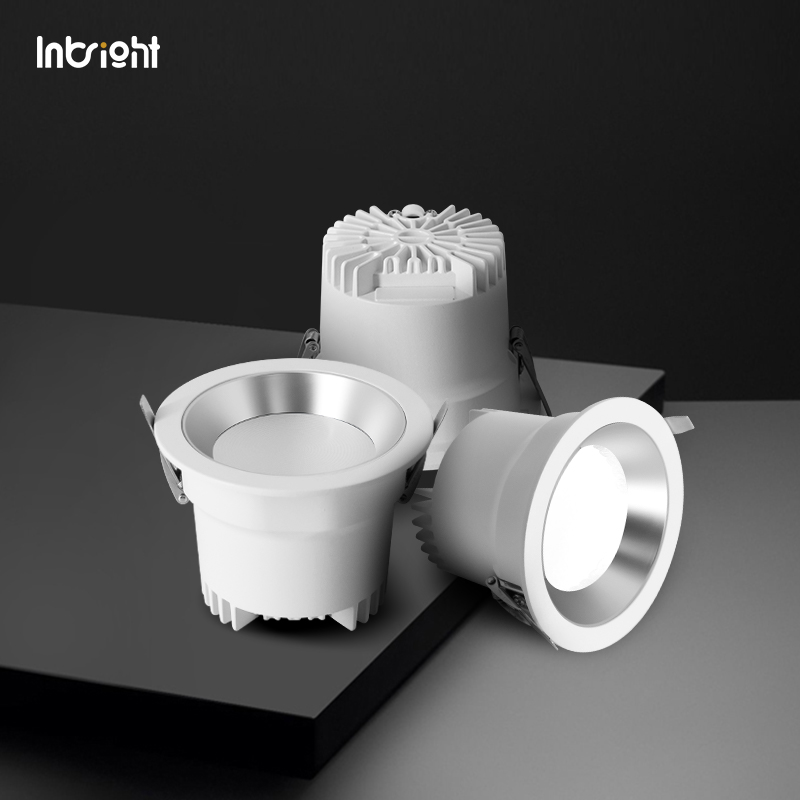

Designed for architectural lighting projects requiring excellent glare control, this 15W LED downlight delivers efficient illumination and a sleek appearance, with branding options and reflector choices.
Luminous Efficacy: Up to 130lm/W
Wattage: 15W
Beam Angle: 60°
UGR Rating: <19 (Low Glare)
Baffle Options: Matt Silver / Mirror / Black
Optional Accessory: Custom Logo Plate
Fixture Size: Φ104 × H77mm
Cutout Size: Ø90mm (Fits Ø90–95mm)
Input Voltage: AC85-265V
Color Temperatures: 2700K / 3000K / 4000K / 6000K
Luminous Flux: Approx. 1950lm
CRI: Ra ≥ 80 / 90
LED Source: COB
Dimming: Optional (Triac, 0-10V, DALI)
Driver: External Constant Current, PF > 0.9
Material: Die-cast Aluminum
Finish: White Powder Coating
Mounting: Recessed Spring Clips
IP Rating: IP20
Start Time:
<0.5s< li="">
Flicker-Free: Yes
Heat Sink: Integrated Fins for Heat Dissipation
Glare Control: Deep Reflector + Baffle
Logo Plate: Custom Branding Option
Certifications: CE, RoHS
Operating Temp: -20°C ~ +50°C
Storage Temp: -40°C ~ +80°C
Warranty: 3~5 Years
Weight: ~0.25kg
Energy Efficiency: A+
LED Lifespan: >50,000 hours
Application: Commercial, Retail, Office, Hotel, Residential
Smart Control: Optional Zigbee / DALI / Bluetooth
Recessed Depth: ≥77mm
Connection: Terminal Block
Surface Treatment: Matte & Anti-scratch Coating
Housing Color: White (Default)
Packaging: Neutral Box
Safety Class: Class II
Installation Type: Recessed Ceiling Mount
Eco Compliance: RoHS / Lead-Free
